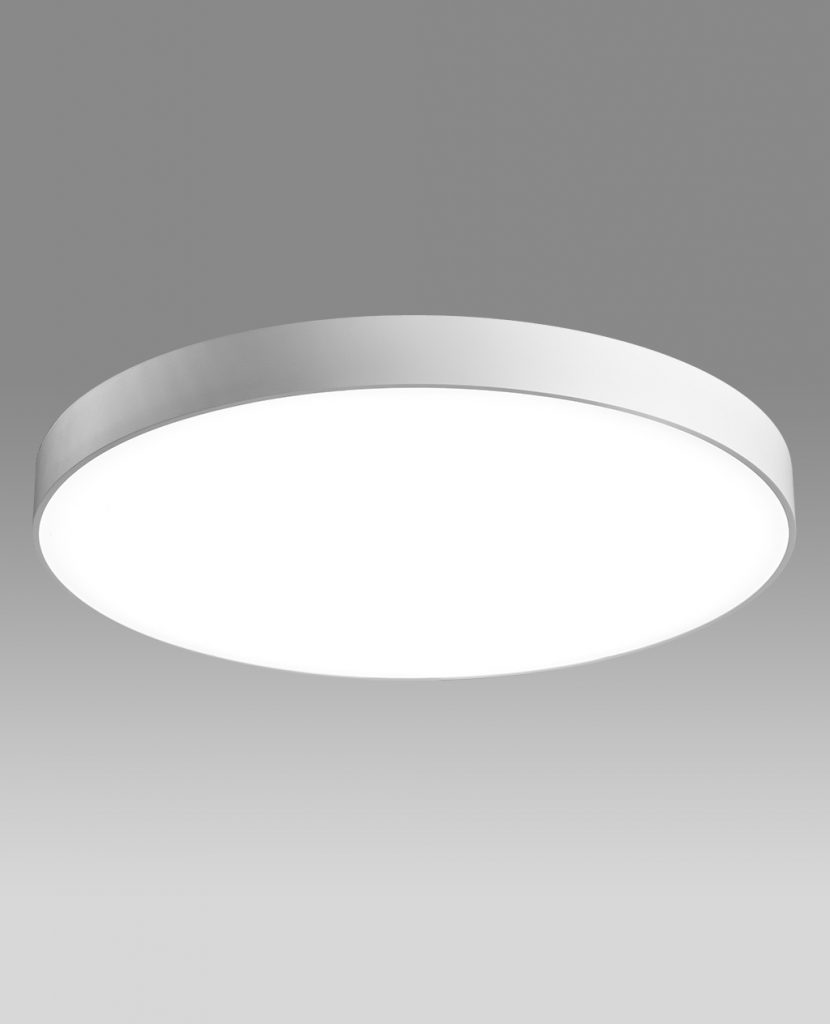

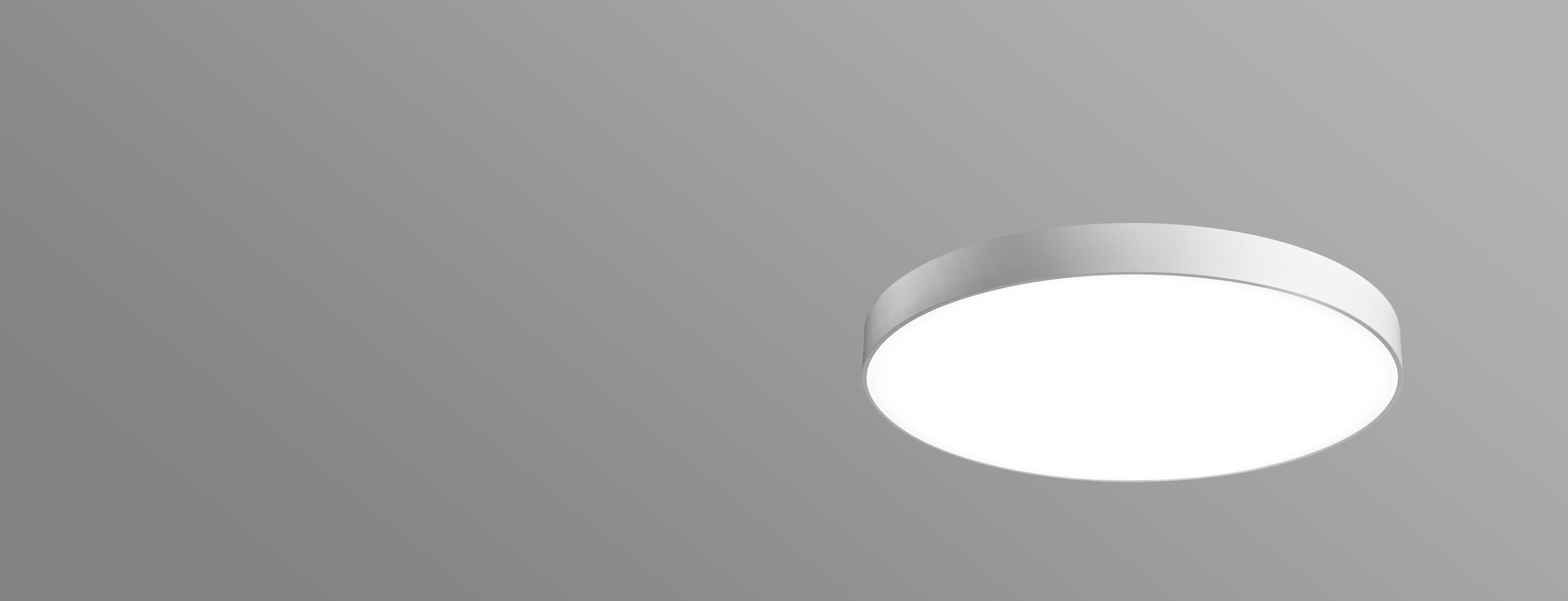

LINNO Surface Mount

19_Linno_120

LINNO Surface Mount

LINNO-Surface

PRODUCT SPECIFICATION

Aluminum housing
Electro static Powder coating in different colors
Available in 1140 ,860 ,580 ,360 mm Diameters
Anti UV PMMA diffuser with homogeneous light
distribution
Stainless steel suspending fixture
Polyamide terminal with through wiring
High efficiency LED SMD modules with L90F50
50000h lifelong
CRI >80 and macAdam step 3
Dimmable ECG with %95 efficacy and >0.97 Ø

Showing all 4 results

Cross Section View

Technical detail

LINNO PM

Reference Power Luminous flux efficacy Diameter
NLI 40 PM 19 w 28 w 2152 lm   3075 lm 109.8 lm/w 113 lm/w 36 cm
NLI 60 PM 28 w 44 w 3780 lm 5790 lm 135 lm/w 131 lm/w 58 cm
NLI 90 PM 54 w 90 w 7590 lm 12000 lm 140 lm/w 133 lm/w 86 cm
NLI 120 PM 78 w 159 w 10650 lm 21000 lm 136 lm/w 132 lm/w 114 cm

Visual Specification
