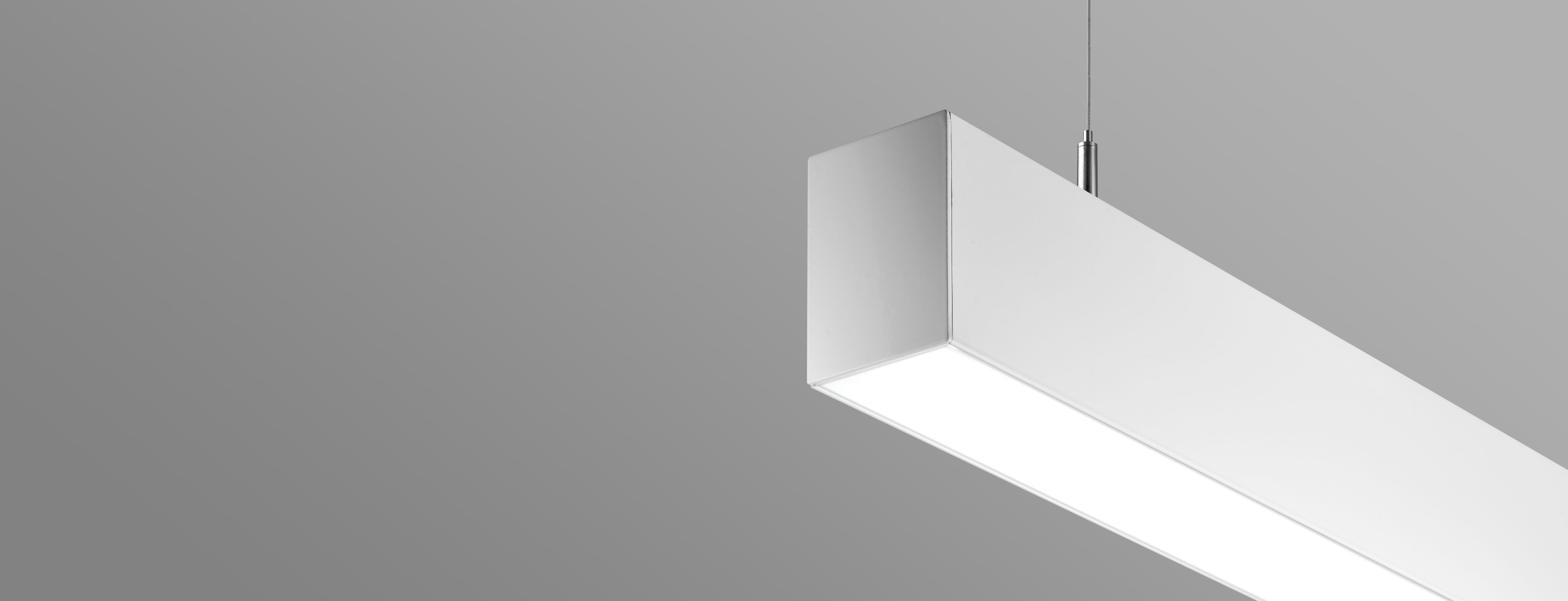

LINE Pendant

33_line-30-pendant

LINE Pendant

LINE Pendant

PRODUCT SPECIFICATION

Aluminum extruded housing with the width of ,3.5
6 and 9 cm
Powder coating
Anti UV PMMA or PC diffuser
Polyamide terminal with through wiring
High efficiency Linear LED SMD modules with
L90F50 43000h lifelong
CRI >80 and macAdam step 3
Electronic control gear with %95 efficacy and >0.97 Ø

Cross Section View

Technical detail

LINE NL 30

Reference Power Luminous flux efficacy length
NL 30 114 LED PCp (H1) 26w 49w 2832 Lm  5430 Lm 109 Lm/w 109 Lm/w 114 cm
NL 30 171 LED PCp (H1) 37w 72.8 w 4248 Lm  8145 Lm 114 Lm/w 111 Lm/w 171 cm
NL 30 227 LED PCp (H1) 49w 96.4 w 5664 Lm  10860 Lm 115 Lm/w 112 Lm/w 227 cm
NL 30 284 LED PCp (H1) 63w 120 w 7080 lm  13575 Lm 116 Lm/w 113 Lm/w 284 cm

LINE NL 60

Reference Power Luminous flux efficacy length
NL 60 114 LED PMp (H1) 26 w 49 w 2832 Lm  5430 Lm 109 Lm/w 109 Lm/w 114 cm
NL 60 171 LED PMp (H1) 37 w 72.8 w 4248 Lm  8145 Lm 114 Lm/w 111 Lm/w 171 cm
NL 60 227 LED PMp (H1) 49 w 96.4 w 5664 Lm  10860 Lm 115 Lm/w 112 Lm/w 227 cm
NL 60 284 LED PMp (H1) 63 w 120 w 7080 lm  13575 Lm 116 Lm/w 113 Lm/w 284 cm



LINE NL 90

Reference Power Luminous flux efficacy length
NL 90 114 LED PMp (H1) 26 w 49 w 2832 Lm  5430 Lm 109 Lm/w 109 Lm/w 114 cm
NL 90 171 LED PMp (H1) 37 w 72.8 w 4248 Lm  8145 Lm 114 Lm/w 111 Lm/w 171 cm
NL 90 227 LED PMp (H1) 49 w 96.4 w 5664 Lm  10860 Lm 115 Lm/w 112 Lm/w 227 cm
NL 90 284 LED PMp (H1) 63 w 120 w 7080 lm  13575 Lm 116 Lm/w 113 Lm/w 284 cm

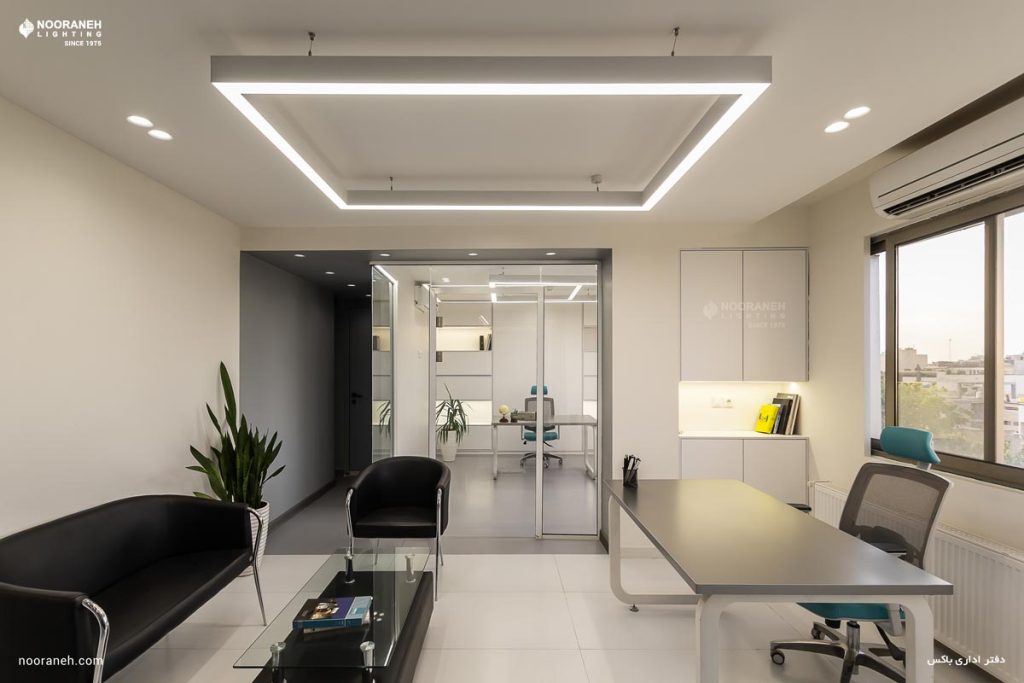

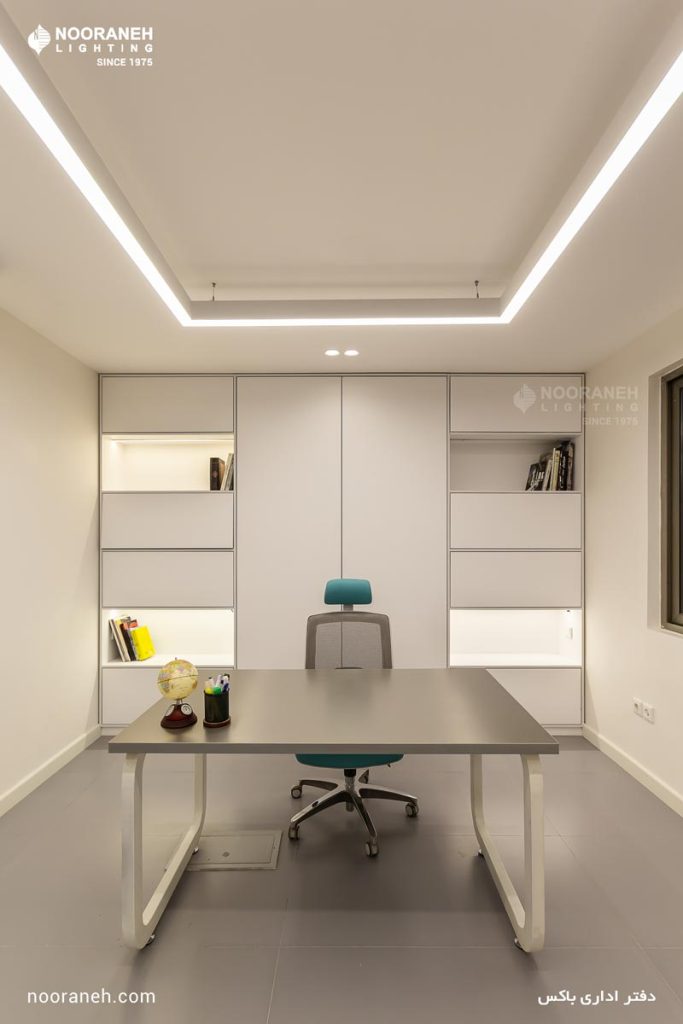

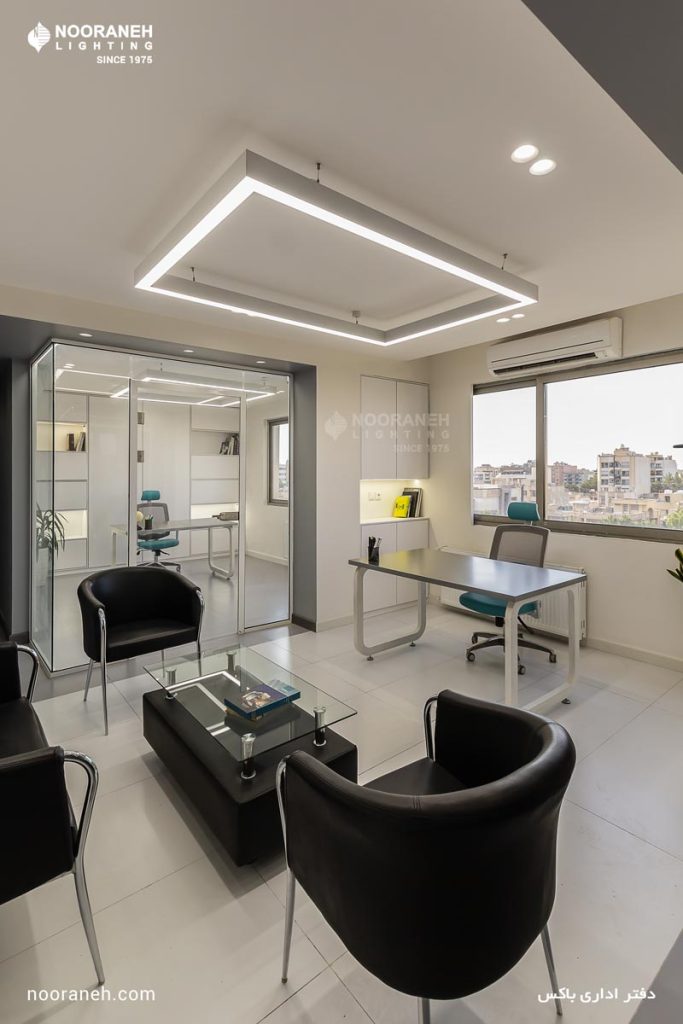

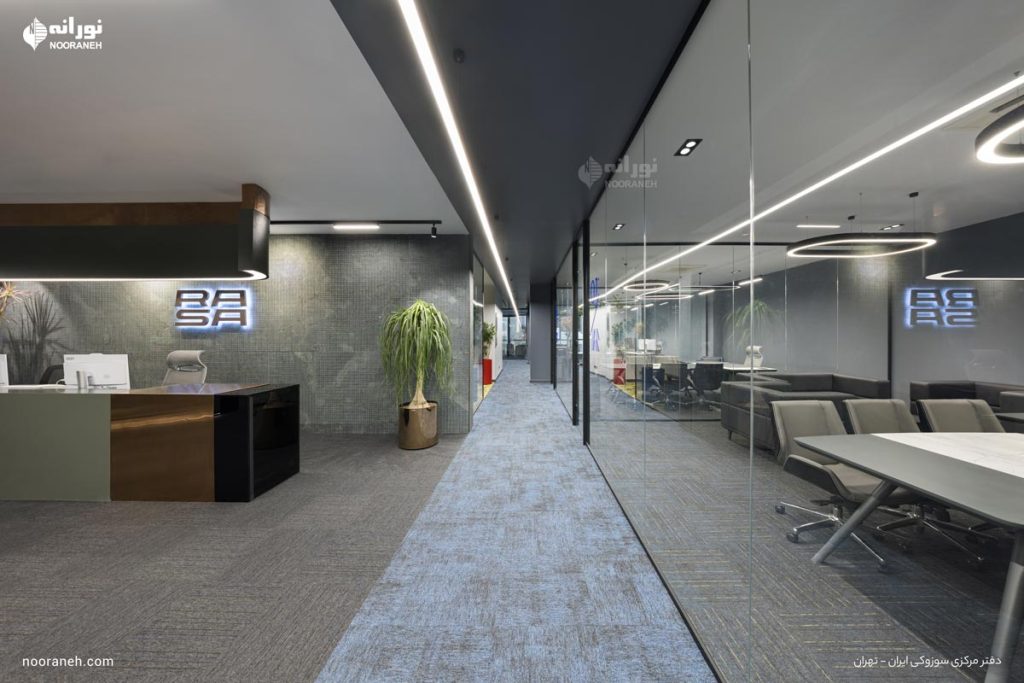

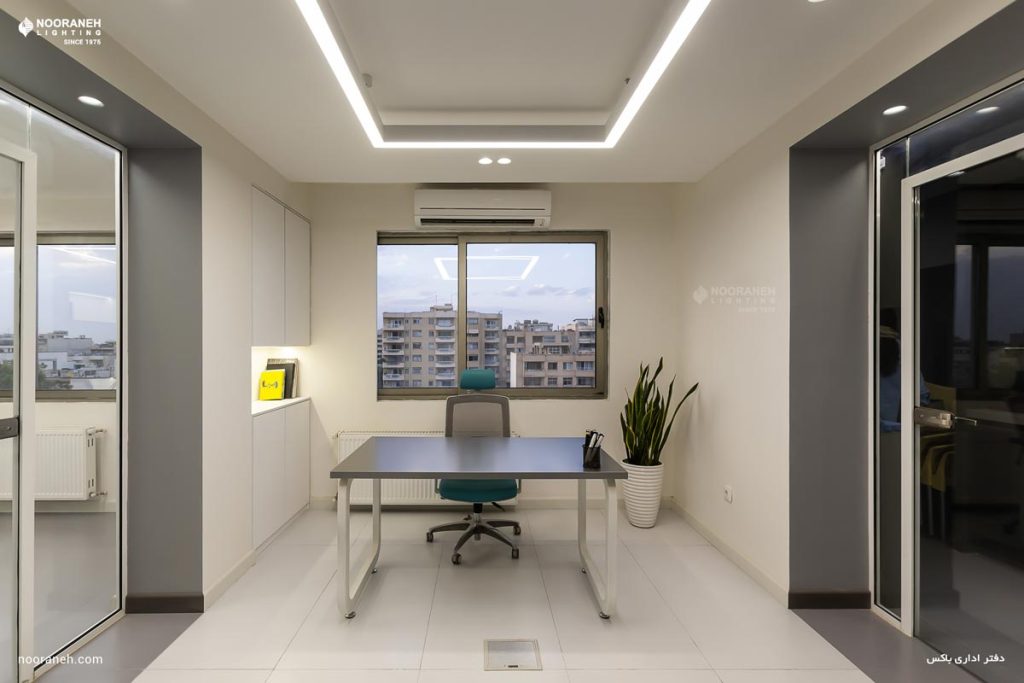

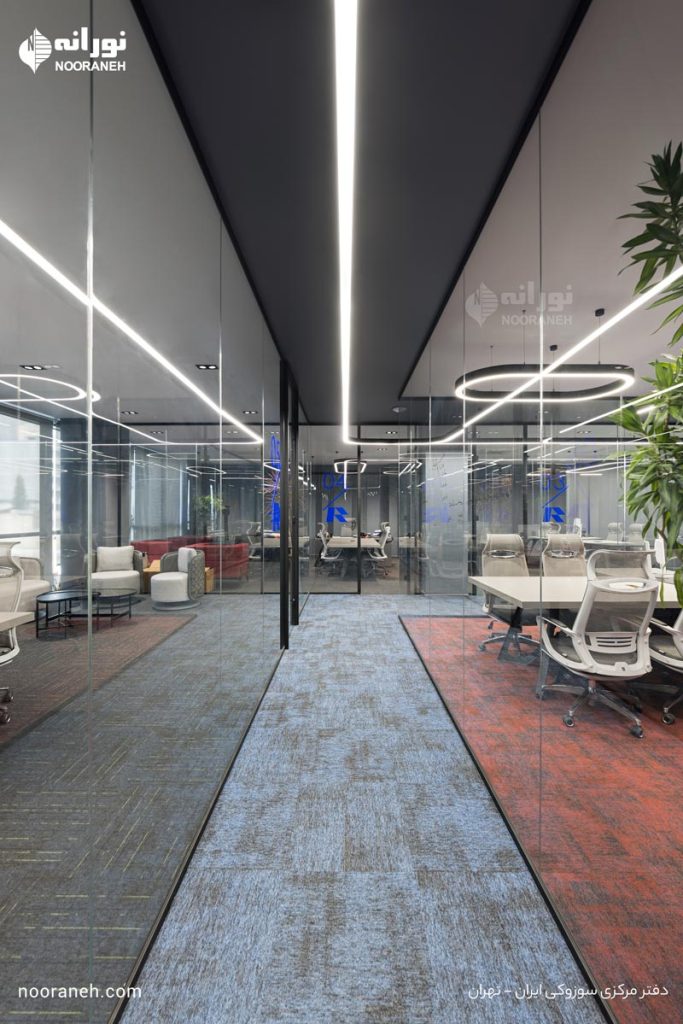

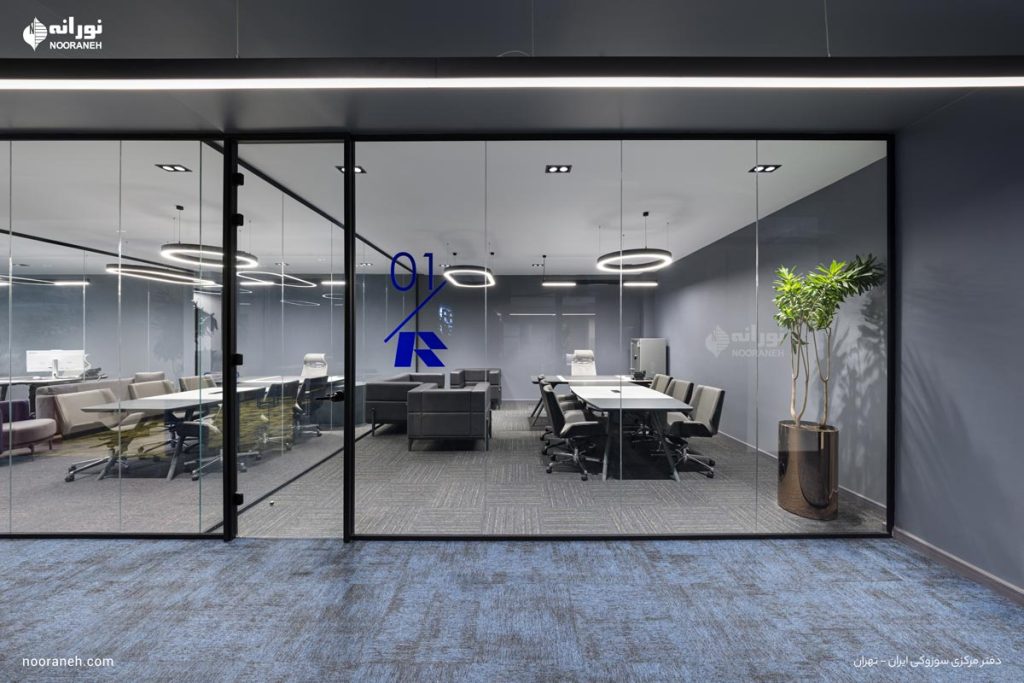

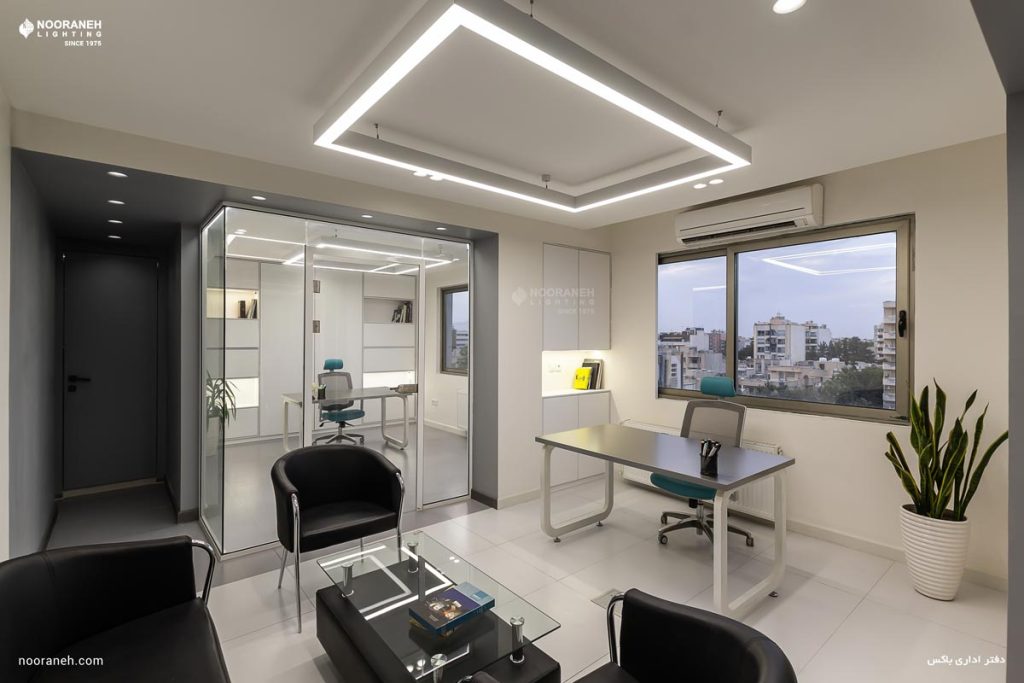

Visual Specification
